Blender Teardown SolidWorks Drawings
As part of a class project for Sophomore Design, my team did a teardown of a blender. For our report, we created Solidworks models of the most interesting components. Presented here are two of the drawings that I did for the brush assembly of the DC motor of the blender.

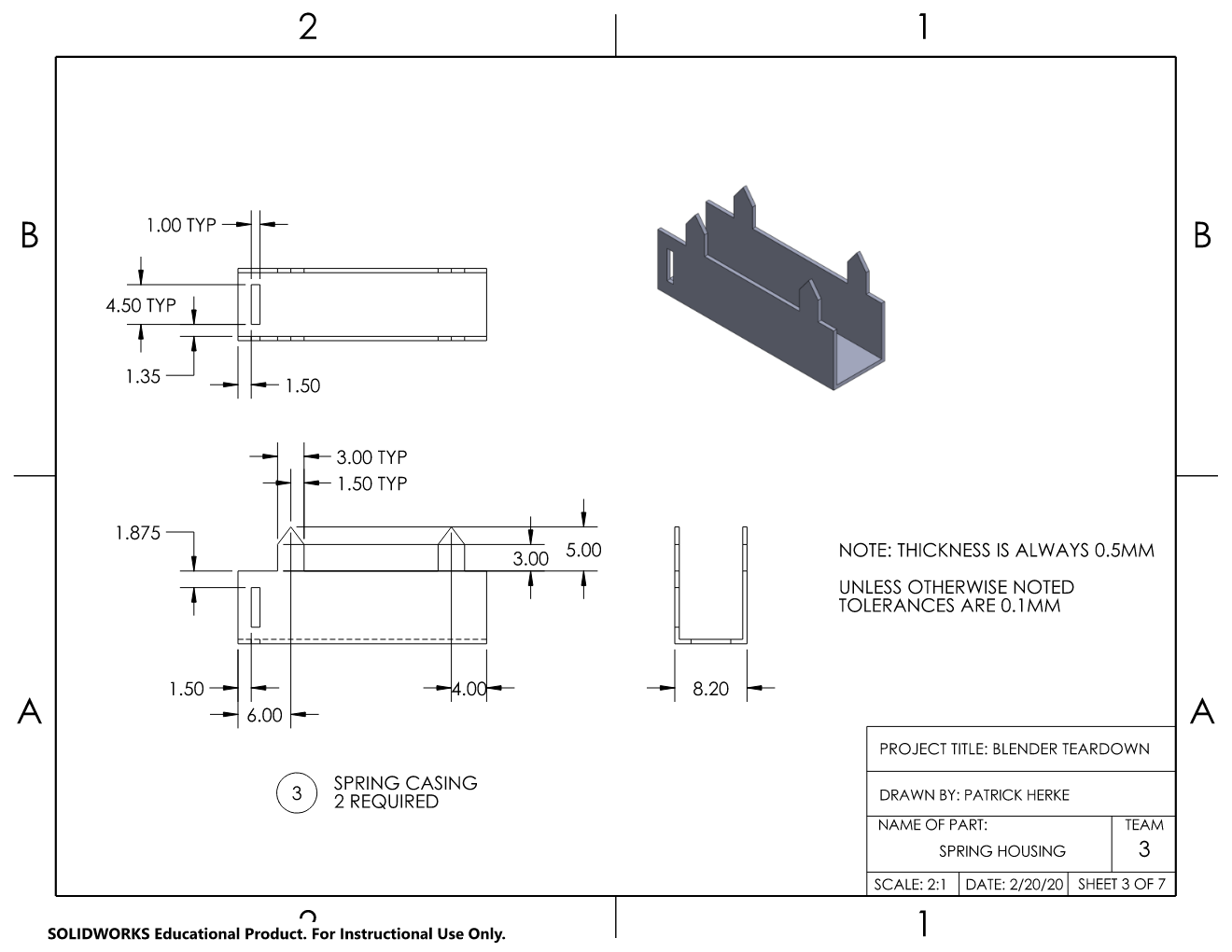

![Spring housing.](/posts/projects/blender-teardown/images/ba-spring-housing.png)
Spring housing.

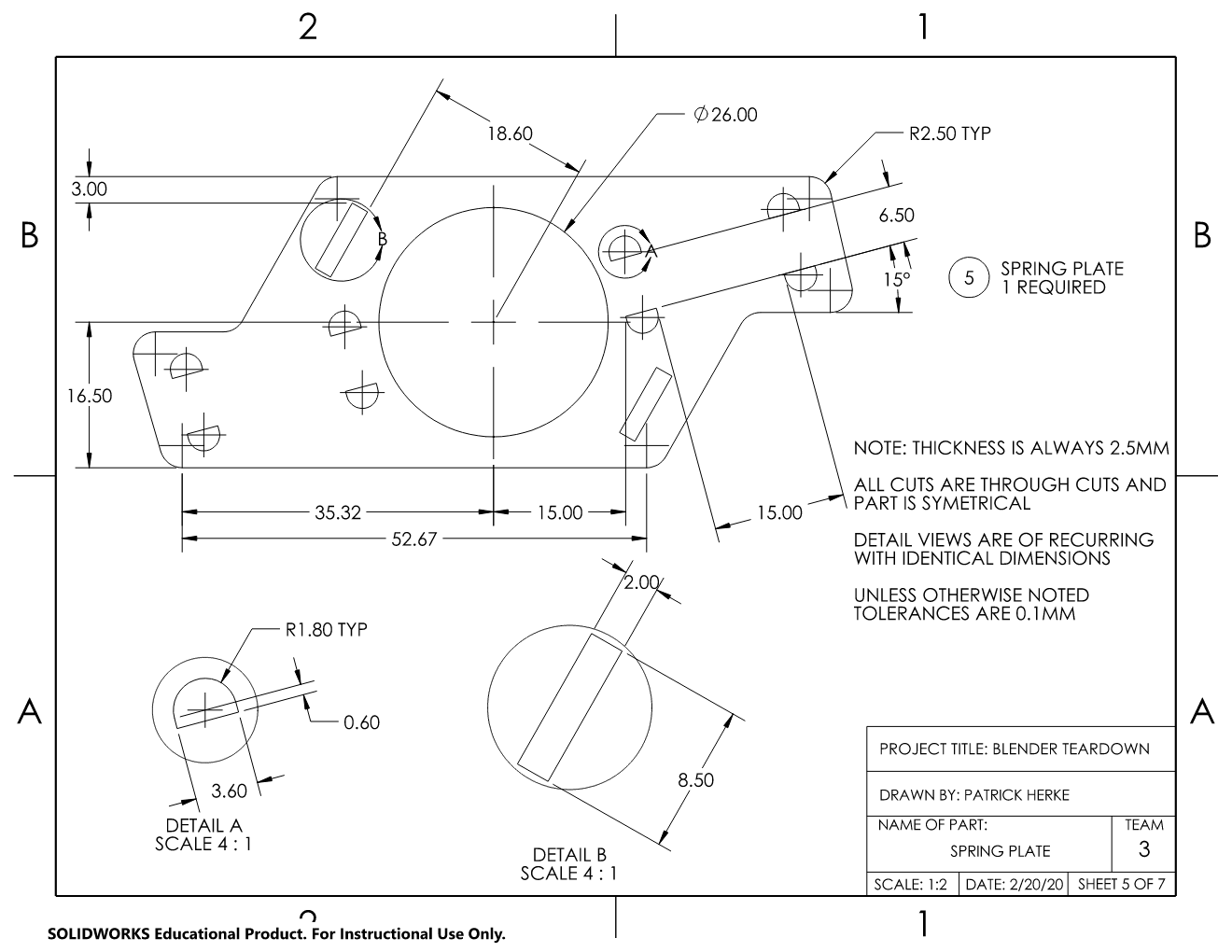

![Spring plate.](/posts/projects/blender-teardown/images/ba-spring-plate.png)
Spring plate.

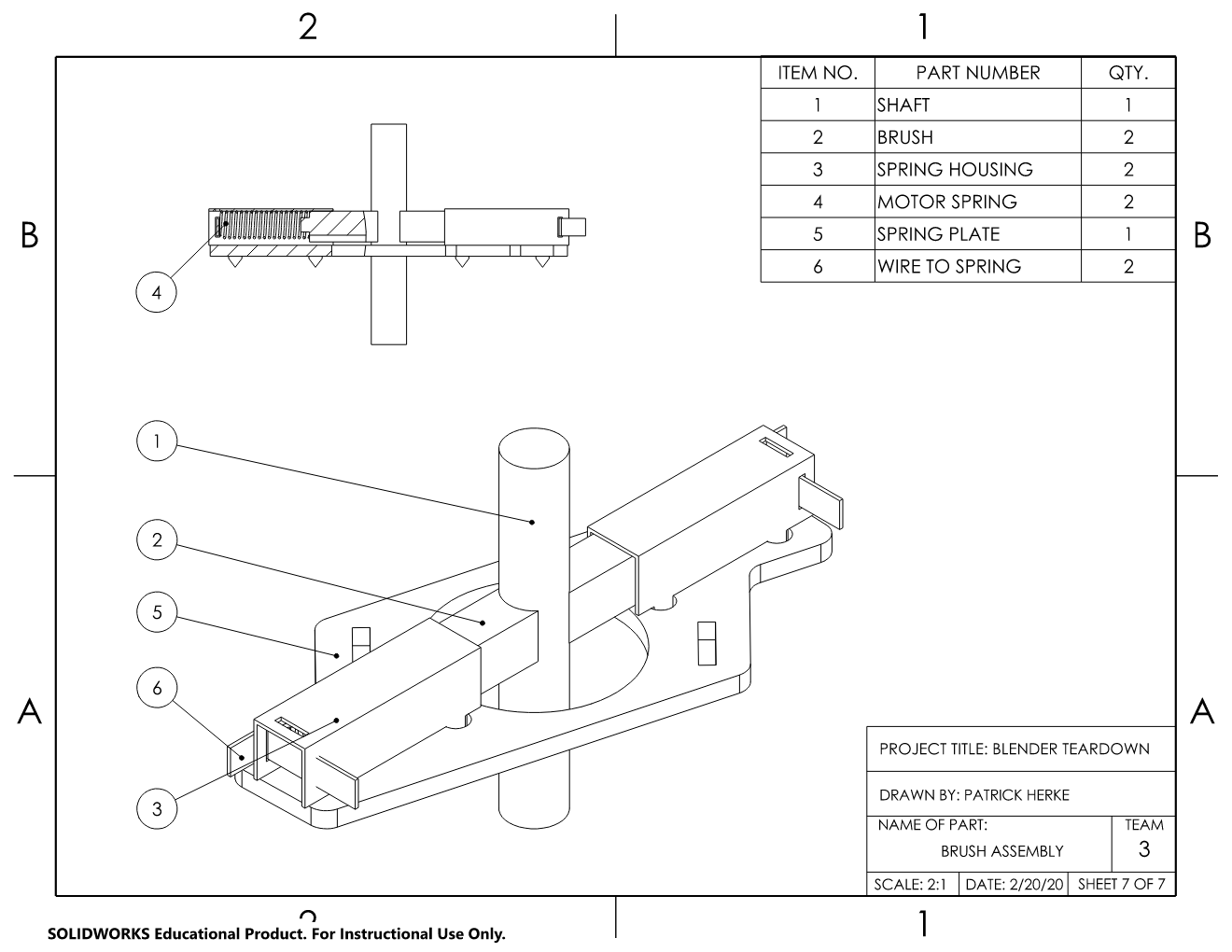

![Brush assembly.](/posts/projects/blender-teardown/images/brush-assembly.png)
Brush assembly.
